規格

System Type	18IN Powered Subwoofer
Woofer Model	718G
Woofer Size	18″
Woofer Magnet	Ferrite
Woofer Voice Coil	3″
Transducer Impedence	4 ohm rated
Max SPL	131dB @1m/2Pi
Freq Range -10	31Hz – 150Hz
Freq Range -3	40Hz -120Hz
Hor Dispersion	Omni
Vert Dispersion	Omni
Crossover Frequency	80, 100, 120Hz selectable
Power Rating	1500W Peak Power 1500W Peak / 750W RMS
AC power input	100V-120V or 220V-240V
Cooling	Passive
LED indicators	1 Power LED, 1 System Limit, 1 Front LED
Input Impedance	50k/100k un-balanced/balanced
Input Gain	-∞to +36db

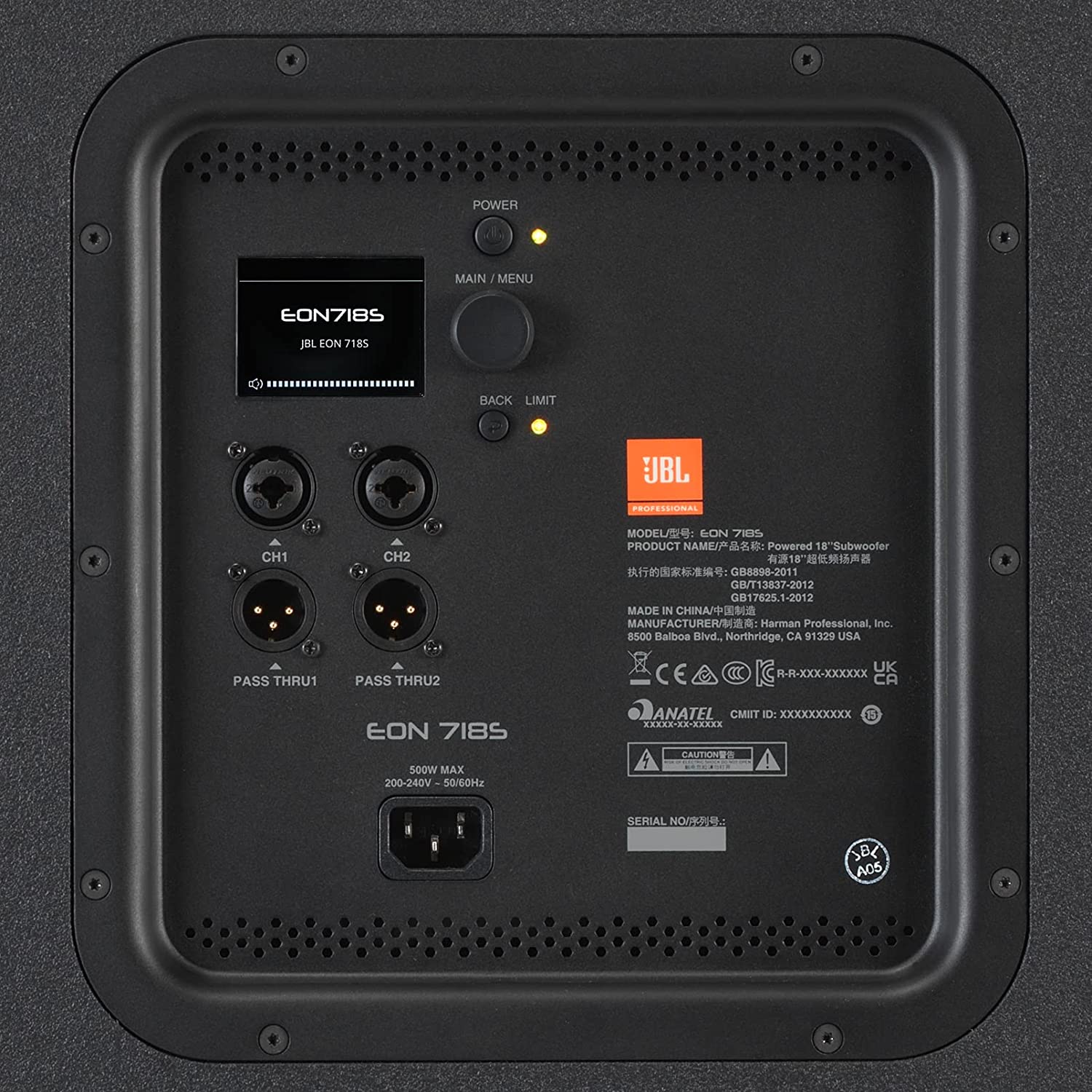

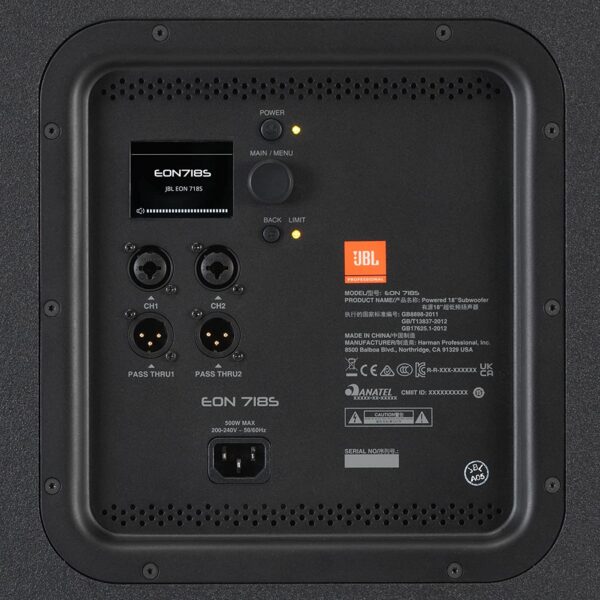

I/O	2 XLR Combo 2 XLR M Thru
Cabinet	18mm Duraflex-coated Birch Plywood
Grille	16GA perforated steel with acoustically transparent black cloth backing
Suspension / Mounting	1 M20 Threaded Polecup
Handles	2
Net Weight	35.5kg (78.26 in.)
Gross Weight	42.5kg (93.70 in.)
Product Dims	HxWxL 674x609x637mm (26.54×23.98×25.08 in.)
Shipping Dims	HxWxL 722x743x713mm (28.43×29.25×28.07 in.)
