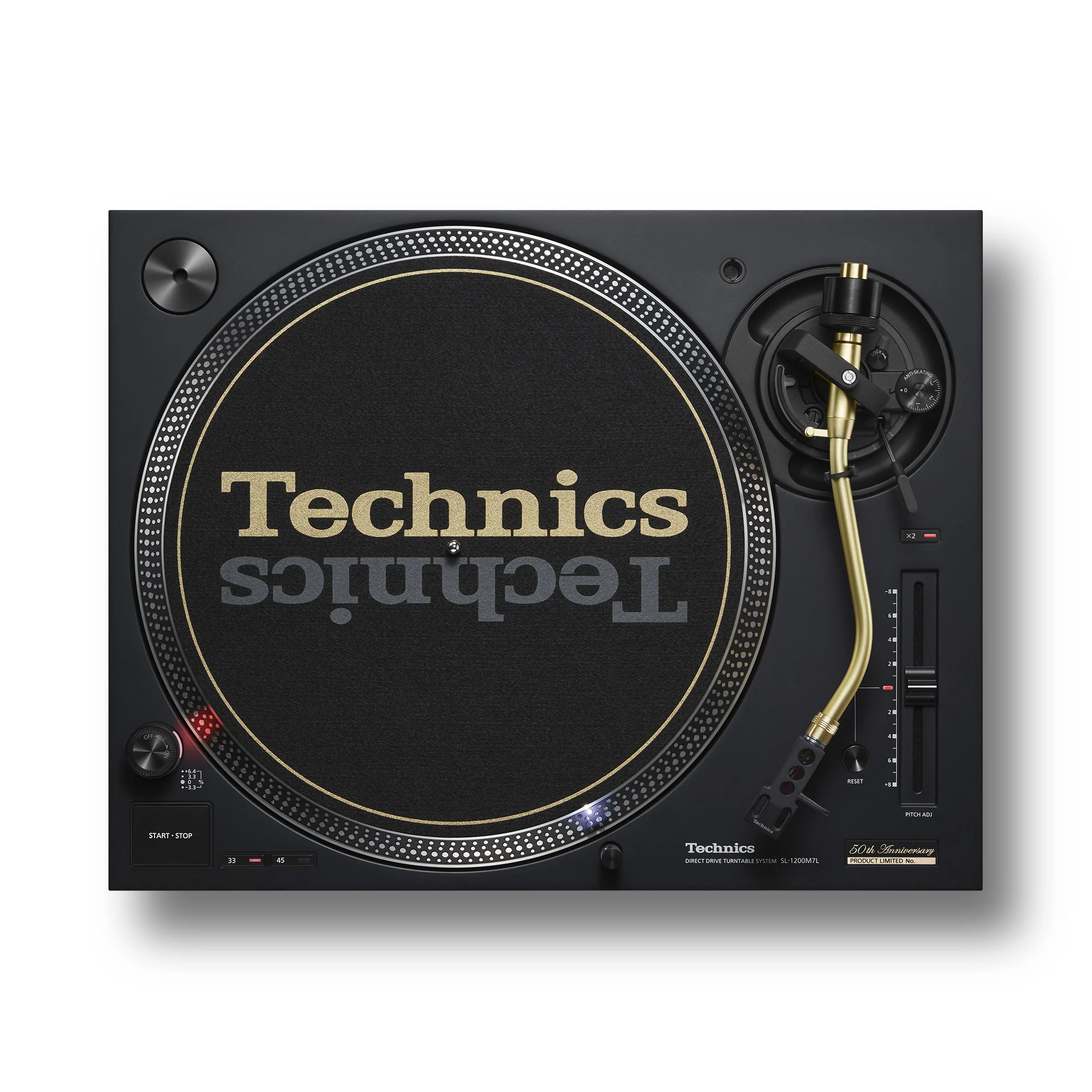

TECHNICS 50TH ANNIVERSARY SL-1200M7L 黑膠唱盤 黑色

唱盤

Type

Direct Drive Manual Turntable

Turntable Speeds

33-1/3, 45 rpm (with switch 78 rpm)

Starting Torque

0.18 N・m / 1.8 kg･cm

Build-up Characteristics

0.7 s. from standstill to 33 1/3 rpm

Wow And Flutter

0.025 %　W.R.M.S.

Turntable Platter

Aluminum die-cast
Diameter: 332 mm (13-5/64 inch)
Weight: Approx. 1.8 kg (4.0 lbs.)
(including slipmat and slipsheet)

唱臂

Type

Universal Static Balance

Effective Length

230 mm (9-1/16″)

Overhang

15 mm (19/32″)

Tracking Error Angle

Within 2° 32’ (at the outer groove of 30 cm (12″) record)
Within 0° 32’ (at the inner groove of 30 cm (12″) record)

Offset Angle

22°

Arm-height Adjustment Range

0 – 6 mm

Stylus Pressure Adjustment Range

0 – 4 g (Direct Reading)

Head Shell Weight

Approx. 7.6 g

Applicable Cartridge Weight Range

(without auxiliary weight)
5.6 – 12.0 g
14.3 – 20.7 g (including head shell)

Head Shell Terminal Lug

1.2 mmφ 4-pin terminal lug

端子

Audio Output

PHONO (Pin Jack) x 1
EARTH TERMINAL x 1

一般規格

Power Supply

AC 110-240 V, 60 Hz

Power Consumption

8 W
Approx. 0.2 W (Standby)

Dimensions (W x H x D)

453 x 169 x 353 mm
17-27/32 × 6-21/32 × 13-29/32 inch

Weight

Approx. 9.6 kg / 21.2 lbs

Accessories

Turntable, Slipmat, Slipsheet, Dust cover, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner’s Manual
